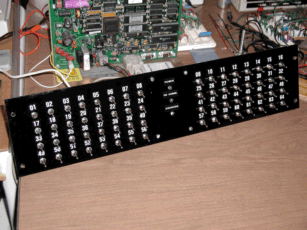

Rack Mounted 64 Switch Panel for N2 Bus

The Rack Mounted 64 Switch panel was designed for use on a lighting control project. It provided for fast manual override of the lighting zones. More than one panel can be used to control more lighting zones. The switch panel appears to Metasys as 64 binary inputs. The inputs can be used in system functions just like any other binary input. They can be masters for interlocks, slaves for interlocks, scheduled points etc. The inputs support COS and overrides. An LED on the panel lights if any input is overridden. There are also N2 communication and power LEDs. This device used a 28 pin MICROCHIP PIC Processor.
